Product family KF-TL528PHD70

TL528 Track Series

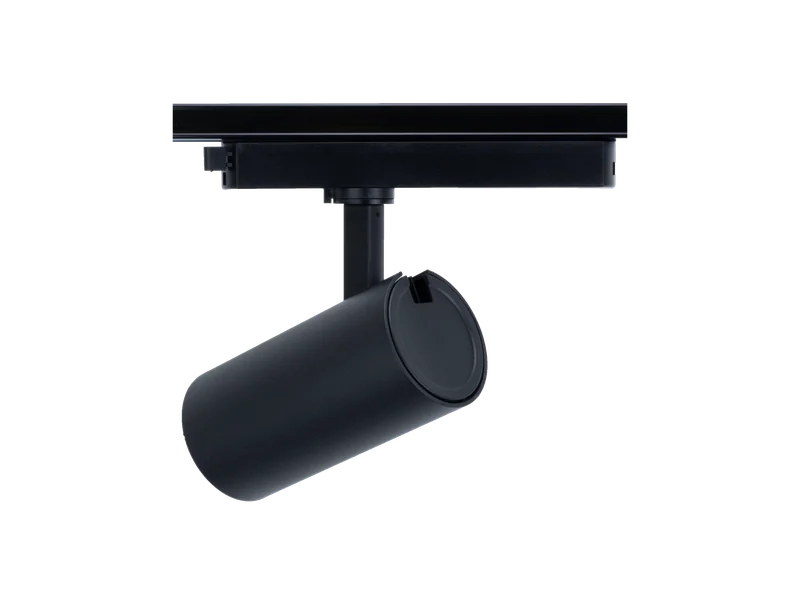

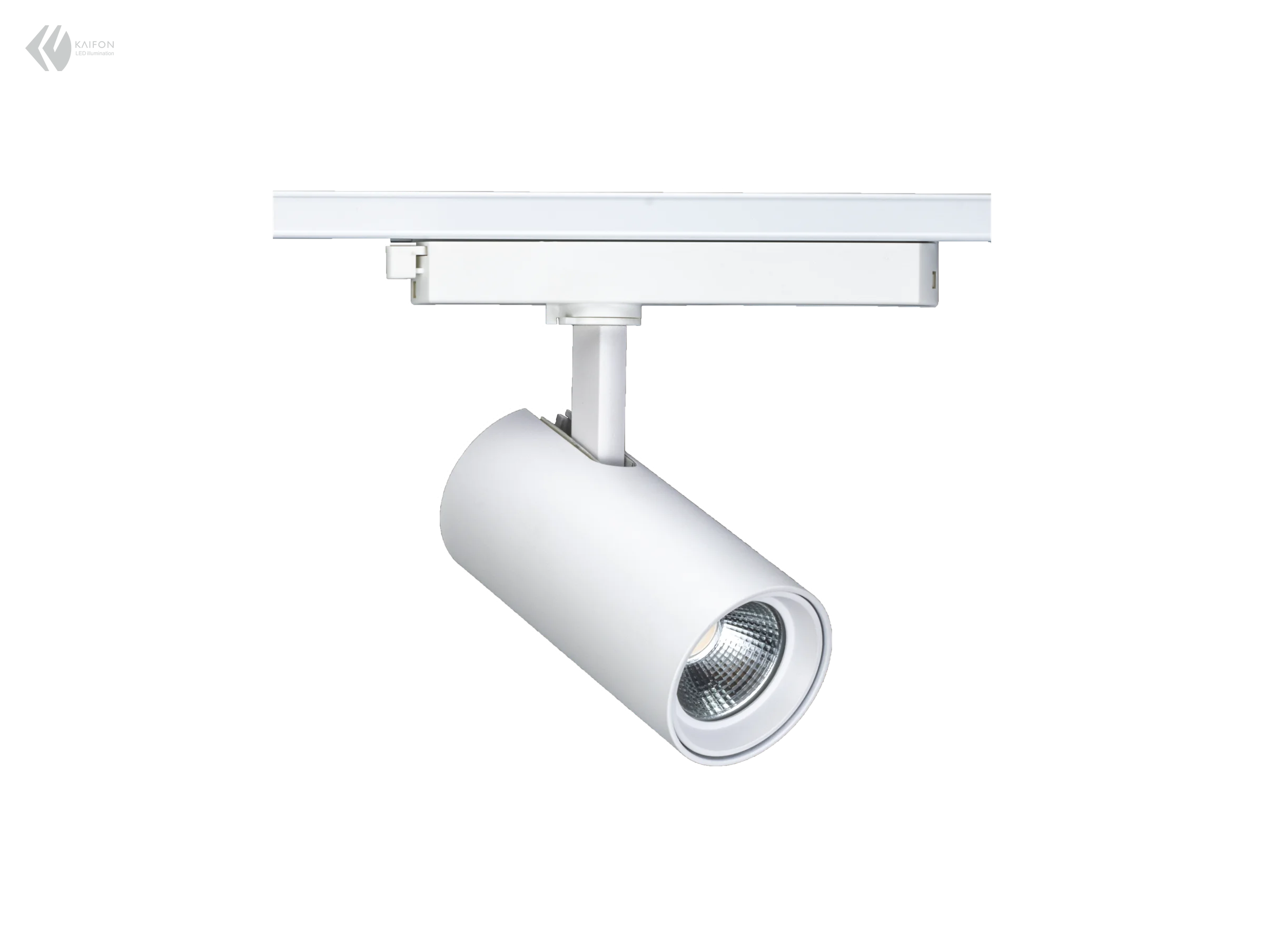

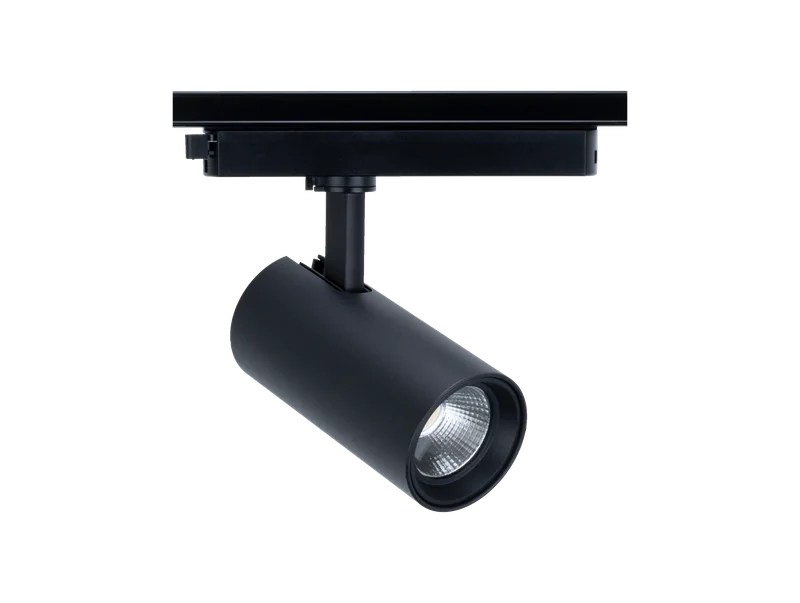

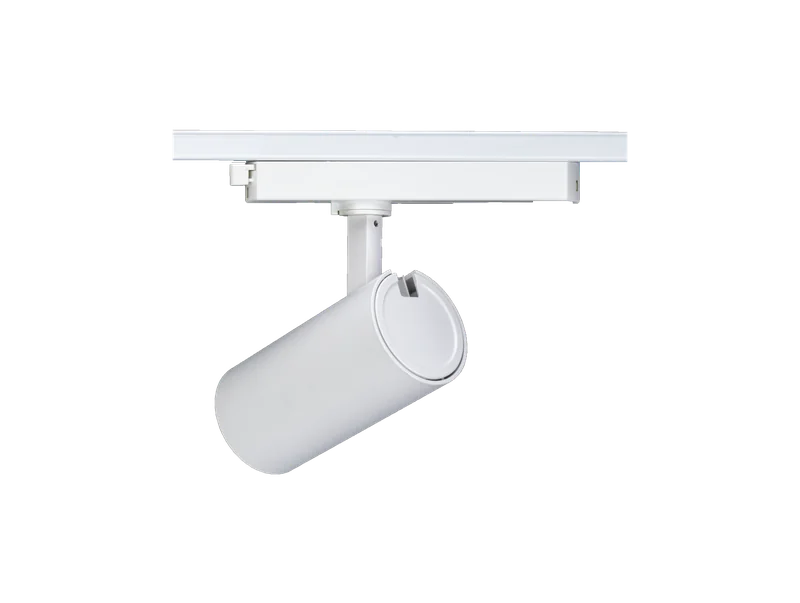

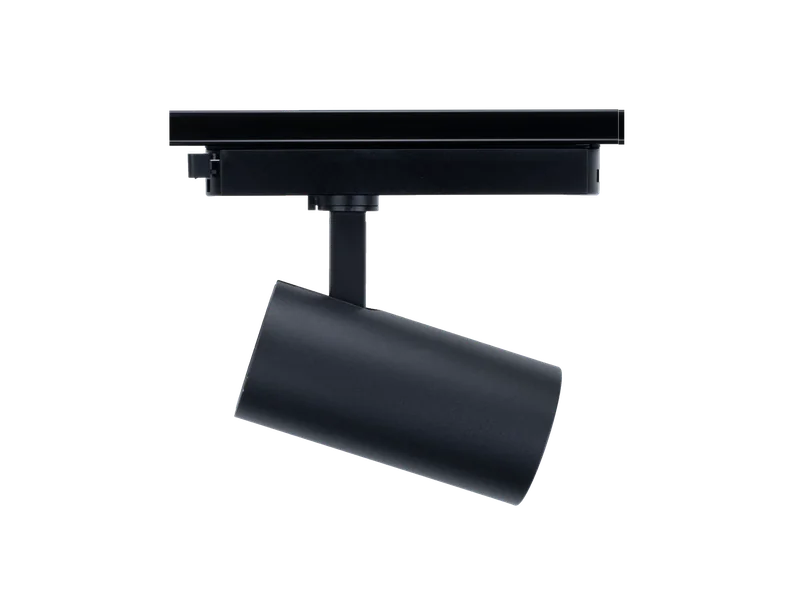

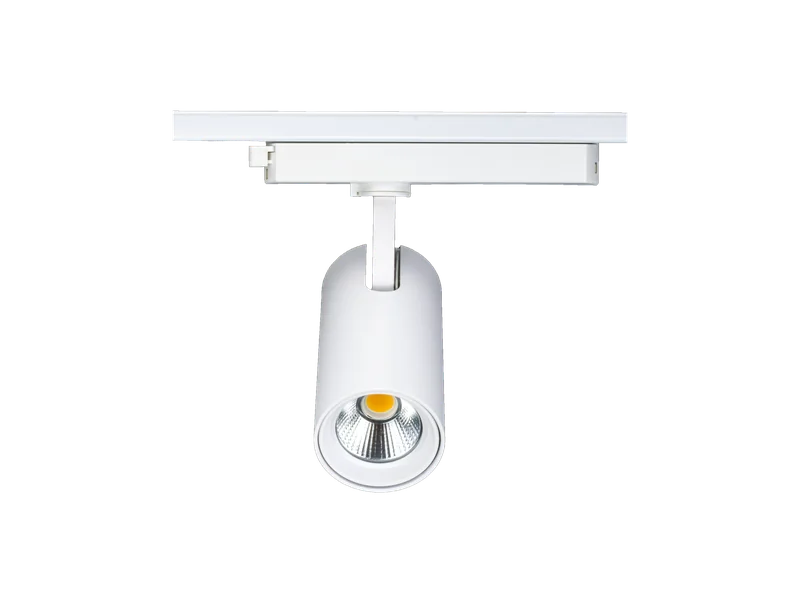

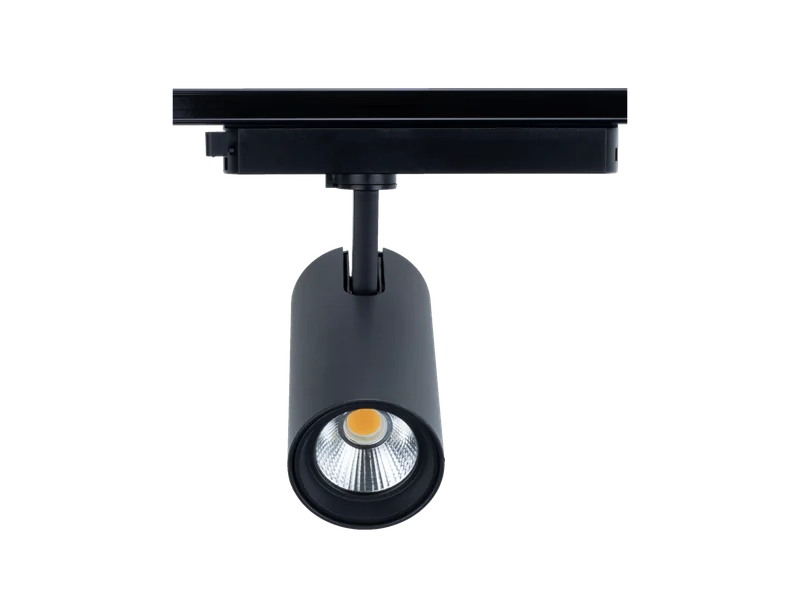

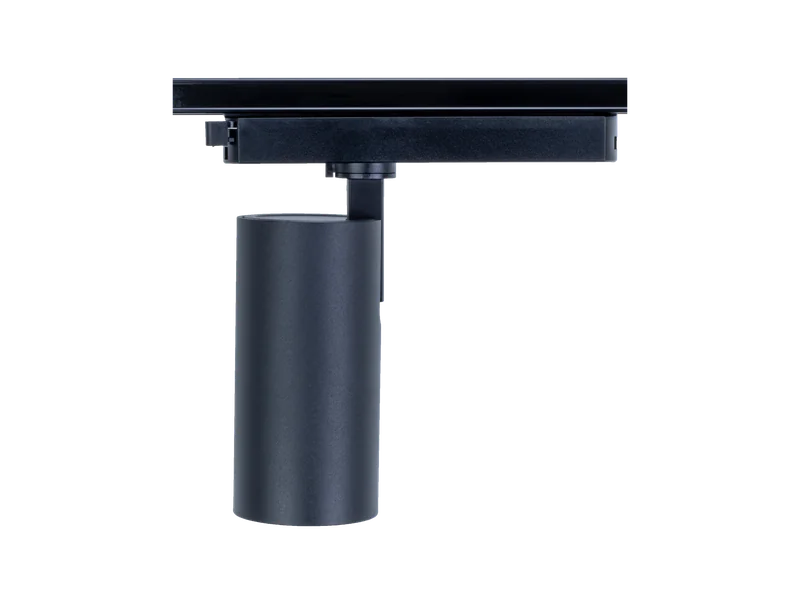

Name: LED Track Spotlight KF-TL528PHD70
Brand: KAIFON Lighting Co., Ltd
SKU: KF-TL528PHD70
Price: 12.00 USD

Precision COB track spotlight with interchangeable beam optics

A die-cast aluminium COB track spotlight in D70 head size. Supplied as a housing kit, or upgraded to a complete luminaire with the COB and driver brand you specify.

Choose head style and size

Head style Head diameter

Specifications update below without changing this page URL.

Kit sample

$12 USD / sample

Made to order

Component scope

Housing Kit

How the Kit model works →

What's included

Housing
Reflector
Track adapter
Heat sink
Trim ring

Supplied by you

COB module
LED driver
COB holder

Model-specific scopeIntegrated driver box. Sample price is for the 4-wire PowerGear track adapter. 2-wire and 3-wire OEM adapter versions are quoted on request.

Housing colour Required

Track Adapter Required No price difference Track adapter Required Price difference shown per sample. Beam angle Required

Sample quantity Required Minimum sample quantity: 1; no maximum is specified.

Upgrade to Full Set sample

Choose the COB, driver, CCT and optic you want us to integrate. Full Set pricing is confirmed by quotation.

Sample cost deduction Sample cost deductible from subsequent lot production order · Valid for 180 days.

Request a Custom Quote

Shipping and any Full Set upgrade are quoted before payment. No payment is taken when you submit this request.

Built for specification

Optics and mechanics, ready for your light engine

The TL528 series is a die-cast aluminium track spotlight built around a faceted anti-glare reflector, designed for retail, gallery and hospitality accent lighting. Head sizes run from D70 to D95 across PH, SD and LD variants, with four beam angles from 15 to 60 degrees so a single series can cover wall washing, shelf accenting and long-throw display lighting.

Every model is supplied as a housing kit by default: the complete fixture with reflector, track adapter and heat sink, without COB, driver or COB holder. Buyers who assemble under their own brand fit their preferred light engine; buyers who want a finished luminaire can request a full set at order time and nominate the COB and driver brand from our approved pool.

The integrated driver box ships with a 4-wire PowerGear track adapter; 2-wire and 3-wire OEM versions are quoted on request. Housings are finished in white, black or silver grey.

Die-cast aluminium housing with faceted anti-glare reflector

Four beam angles from 15° to 60°

CRI ≥90 for retail and gallery lighting

Housing kit or full set with your specified COB and driver

4-wire PowerGear track adapter included, 2- or 3-wire OEM on request

3-year warranty

Technical data

Specifications

Only confirmed values are shown. Full Set figures are reference configurations and are confirmed with the quote.

Kit specification

Model	KF-TL528PHD70
Beam angles	15° / 24° / 36° / 60°
IP rating	IP20
Mounting	Track
Material & finish	Aluminum
Housing colours	White / Black / Silver Grey
Other details	LED-current: 500mA~700mA; Heat-sink: Die-casting Aluminum
Certification	CE

Full set reference specification

Quoted

Power	20W; 25W
Luminous flux	2000lm 3000lm
Efficacy	132~153 lm/W
CCT	3000K / 3500K / 4000K / 5000K
CRI	≥ 90
Input voltage	220V
Rated lifetime	30,000 hours
Warranty	3 years
Reference driver	Philips

Series overview

Compare all TL528 models

Swipe to compare →

Model	Head	Size	Power	Luminous flux	Beam angles	IP
KF-TL528PHD70	PH	D70	20W; 25W	2000lm 3000lm	15° / 24° / 36° / 60°	IP20
KF-TL528PHD85	PH	D85	25W; 35W	3000lm 4000lm	15° / 24° / 36° / 60°	IP20
KF-TL528PHD95	PH	D95	35W; 40W	4000lm 4700lm	15° / 24° / 36° / 60°	IP20
KF-TL528SD70	SD	D70	20W; 25W	2000lm 3000lm	15° / 24° / 36° / 60°	IP20
KF-TL528LD85	LD	D85	25W; 35W	3000lm 4000lm	15° / 24° / 36° / 60°	IP20
KF-TL528LD95	LD	D95	35W; 40W	4000lm 4700lm	15° / 24° / 36° / 60°	IP20
