KF-TL116-WH-2

Housing kit KF-TL116

KF-TL116

Three beam options in a spotlight housing Kit, with Full Set upgrades.

An aluminium spotlight housing Kit with three beam options from 15° to 36°. Available for direct Kit supply, or as a Full Set upgrade quoted to your requirements.

Kit sample

Price on request

Sample configuration
Component scope

Housing Kit

How the Kit model works →

What's included

  • Housing
  • Reflector
  • Track adapter
  • Heat sink
  • Trim ring

Supplied by you

  • COB module
  • LED driver
  • COB holder

Configuration freedomKeep control of the light engine while the housing, optic and thermal structure stay consistent.

Housing colour Required

Choose the COB, driver, CCT and optic you want us to integrate. Full Set pricing is confirmed by quotation.

Request Sample Quote Request a Custom Quote

Shipping and any Full Set upgrade are quoted before payment. No payment is taken when you submit this request.

Built for specification

Optics and mechanics, ready for your light engine

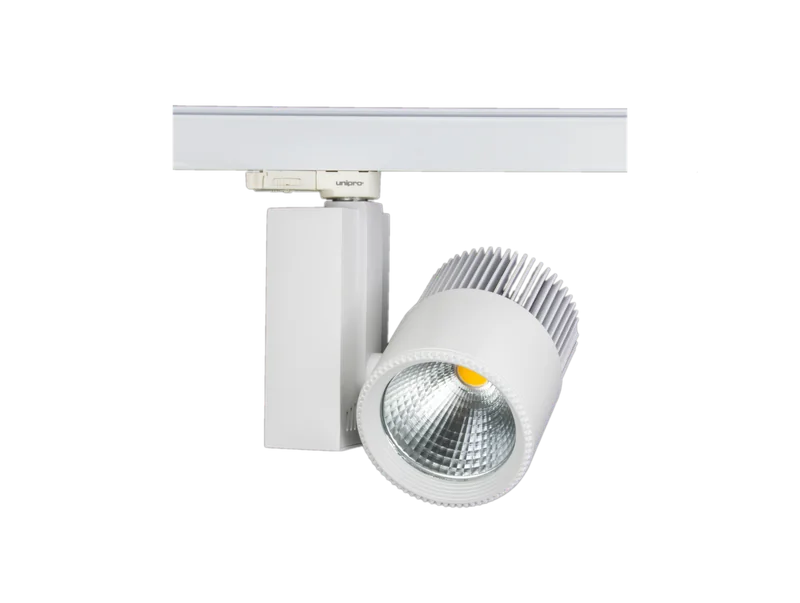

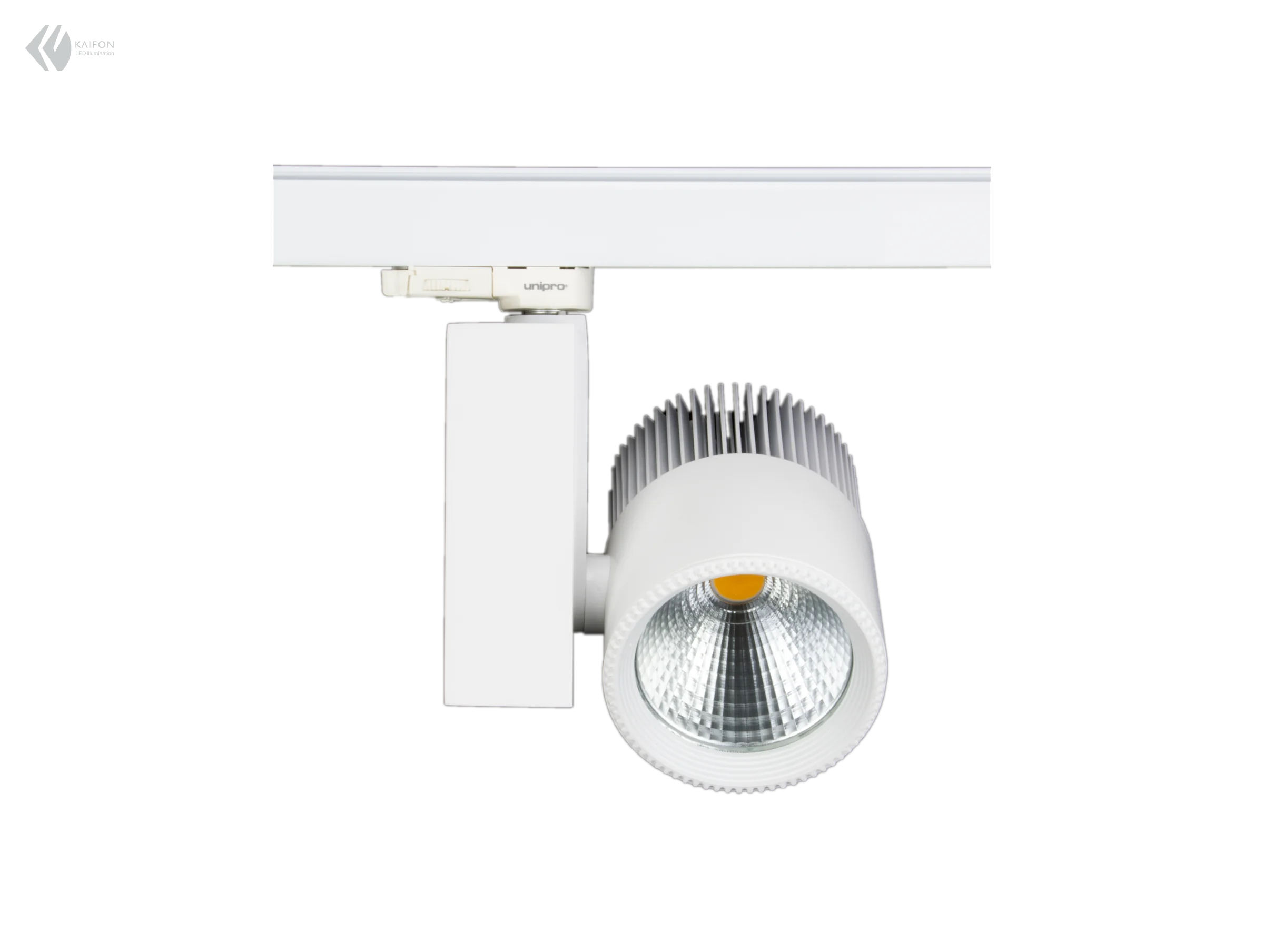

KF-TL116 is an aluminium spotlight housing Kit with a cold-forged heat sink. Beam options are 15°, 24° and 36°, with housing colours in white, black or silver grey.

Full Set reference specifications include 25W, 30W and 40W, colour temperatures of 3000K, 3500K or 4000K, and CRI ≥90. These light-engine specifications apply to the complete luminaire; the required combination is confirmed when quoting the upgrade.

The housing Kit is available for direct supply without a COB module, LED driver or COB holder. For a complete luminaire, request a Full Set upgrade and share your COB and driver requirements. Components and pricing are confirmed in the quotation.

01

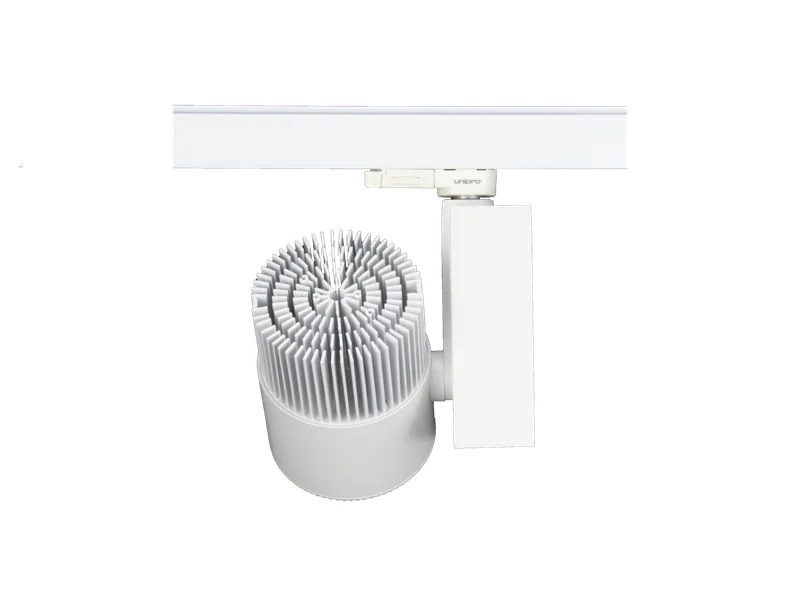

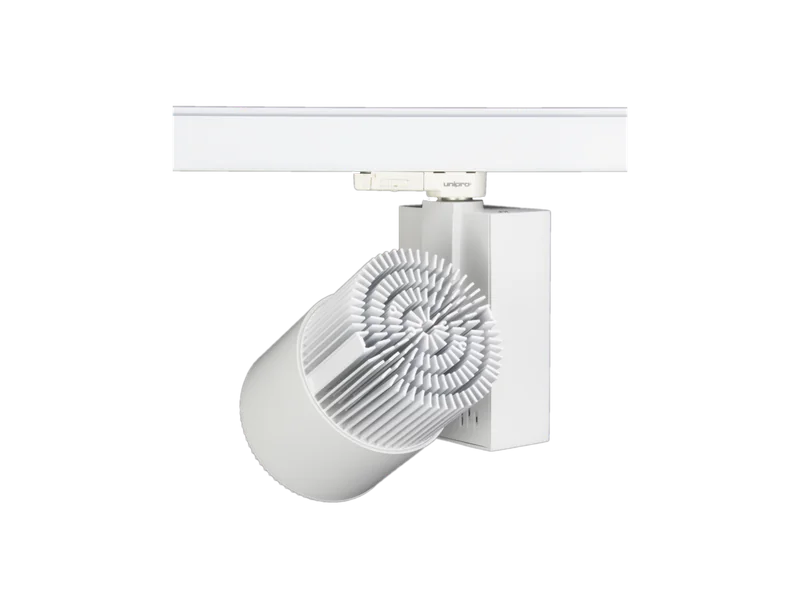

Aluminium housing with a cold-forged heat sink

02

Three beam options: 15°, 24° and 36°

03

White, black or silver grey housing

04

Full Set reference: 25W, 30W and 40W, 3000K / 3500K / 4000K and CRI ≥90

05

Housing Kit direct supply without COB, driver or COB holder

06

Full Set upgrade with component requirements confirmed in the quote

Technical data

Specifications

Only confirmed values are shown. Full Set figures are reference configurations and are confirmed with the quote.

Kit specification

ModelKF-TL116
Beam angles15° / 24° / 36°
IP ratingIP20
Material & finishAluminum
Housing coloursWhite / Black / Silver Grey
Other detailsLampsource: Philips / CREE / Citizen; LED-current: 700mA 850mA 1050mA; Heat-sink: Cold-forging; LED driver: with / without; Certification: CE/ROHS/SAA

Full set reference specification

Quoted
Power25W; 30W; 40W
Luminous flux3000lm 3500lm 4700lm
Efficacy132~153 lm/W
CCT3000K / 3500K / 4000K
CRI≥ 90
Input voltage220V
Rated lifetime30,000 hours

Downloads

Technical files

Files are being prepared

Ask for the current datasheet, drawing or photometric file with your inquiry.

Project support

Need a different optic, finish or full-set configuration?

Share your application and project requirements. We will confirm the available configuration and quote.
