Product family KF-TL525

TL525 Track Series

Name: KF-TL525
Brand: KAIFON Lighting Co., Ltd
SKU: KF-TL525

Three beam options in a spotlight housing Kit, with Full Set upgrades.

An aluminium spotlight housing Kit with three beam options from 15° to 36°. Available for direct Kit supply, or as a Full Set upgrade quoted to your requirements.

Choose variant

Model variant

Specifications update below without changing this page URL.

Kit sample

Price on request

Sample configuration

Component scope

Housing Kit

How the Kit model works →

What's included

Housing
Reflector
Track adapter
Heat sink
Trim ring

Supplied by you

COB module
LED driver
COB holder

Configuration freedomKeep control of the light engine while the housing, optic and thermal structure stay consistent.

Housing colour Required

Beam angle Required

Sample quantity Required Minimum sample quantity: 1; no maximum is specified.

Upgrade to Full Set sample

Choose the COB, driver, CCT and optic you want us to integrate. Full Set pricing is confirmed by quotation.

Request Sample Quote Request a Custom Quote

Shipping and any Full Set upgrade are quoted before payment. No payment is taken when you submit this request.

Built for specification

Optics and mechanics, ready for your light engine

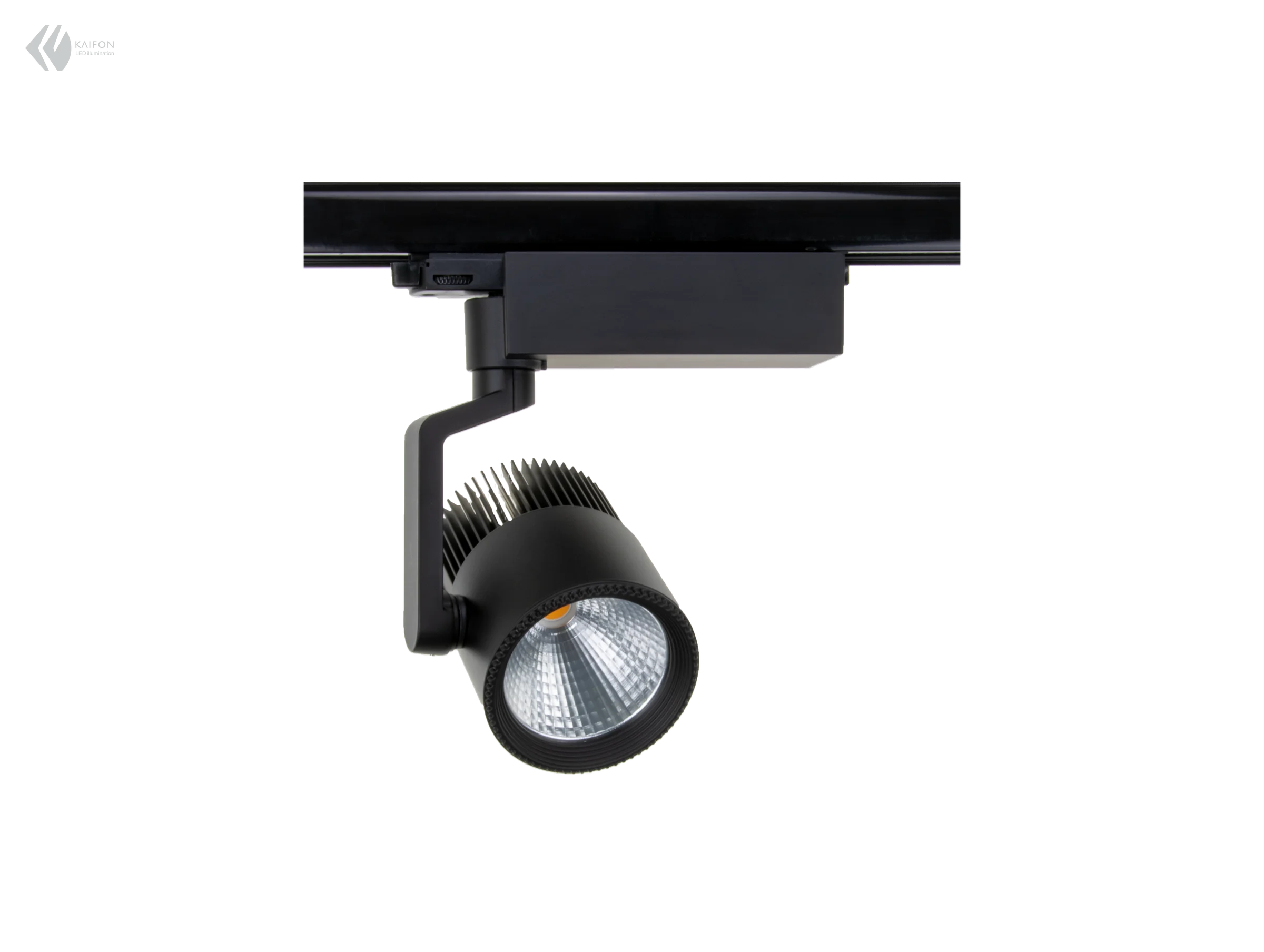

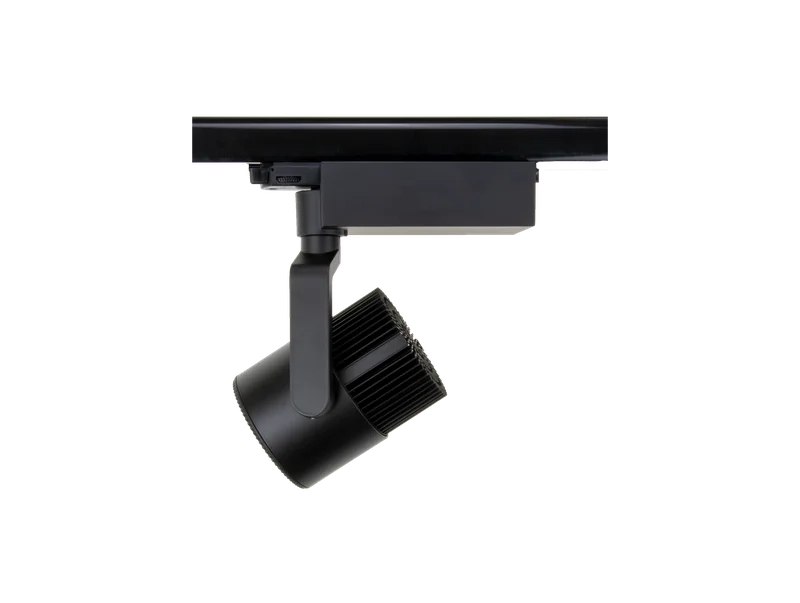

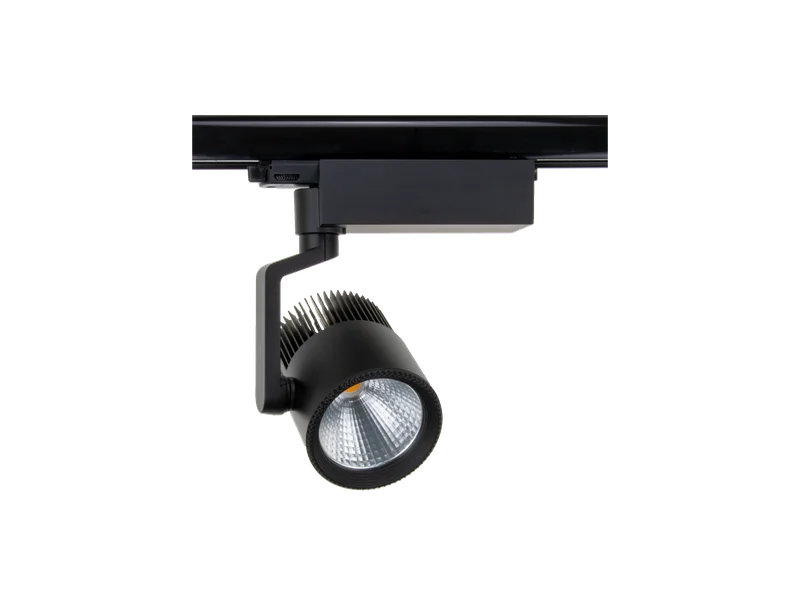

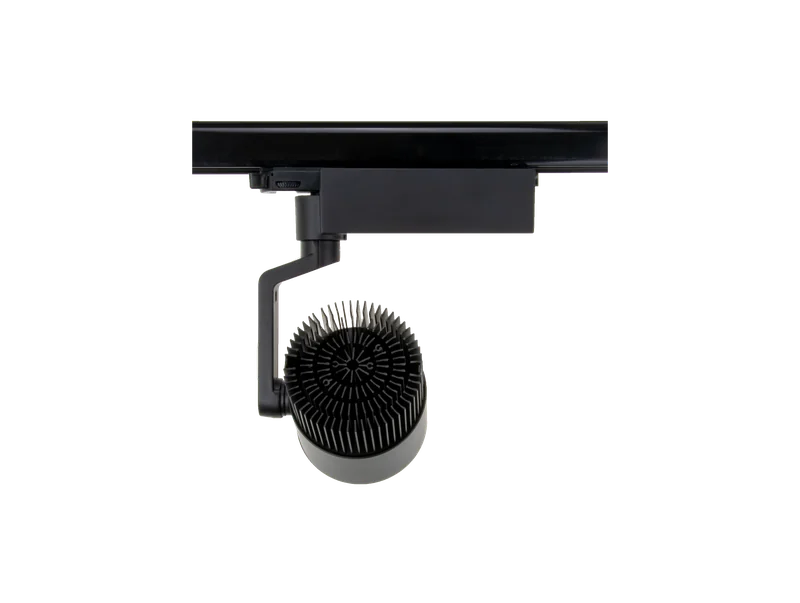

KF-TL525 is an aluminium spotlight housing Kit with a cold-forged heat sink. Beam options are 15°, 24° and 36°, with housing colours in white, black or silver grey.

Full Set reference specifications include 30W and 40W, colour temperatures of 3000K, 3500K or 4000K, and CRI ≥90. These light-engine specifications apply to the complete luminaire; the required combination is confirmed when quoting the upgrade.

The housing Kit is available for direct supply without a COB module, LED driver or COB holder. For a complete luminaire, request a Full Set upgrade and share your COB and driver requirements. Components and pricing are confirmed in the quotation.

Aluminium housing with a cold-forged heat sink

Three beam options: 15°, 24° and 36°

White, black or silver grey housing

Full Set reference: 30W and 40W, 3000K / 3500K / 4000K and CRI ≥90

Housing Kit direct supply without COB, driver or COB holder

Full Set upgrade with component requirements confirmed in the quote

Technical data

Specifications

Only confirmed values are shown. Full Set figures are reference configurations and are confirmed with the quote.

Kit specification

Model	KF-TL525
Beam angles	15° / 24° / 36°
IP rating	IP20
Material & finish	Aluminum
Housing colours	White / Black / Silver Grey
Other details	Lampsource: Philips / CREE / Citizen; LED-current: 850mA 1050mA; Heat-sink: Cold-forging; LED driver: with / without; Certification: CE/ROHS/SAA
