Product family KF-HL0010-A3

HL0010 Series

Name: KF-HL0010-A3
Brand: KAIFON Lighting Co., Ltd
SKU: KF-HL0010-A3

Four beam options in a ceiling-light housing Kit, with Full Set upgrades.

An aluminium ceiling-light housing Kit with four beam options from 15° to 60°. Available for direct Kit supply, or as a Full Set upgrade quoted to your requirements.

Choose variant

Model variant

Specifications update below without changing this page URL.

Kit sample

Price on request

Sample configuration

Component scope

Housing Kit

How the Kit model works →

What's included

Housing
Reflector
Heat sink
Trim ring

Supplied by you

COB module
LED driver
COB holder

Configuration freedomKeep control of the light engine while the housing, optic and thermal structure stay consistent.

Housing colour Required

Beam angle Required

Sample quantity Required Minimum sample quantity: 1; no maximum is specified.

Upgrade to Full Set sample

Choose the COB, driver, CCT and optic you want us to integrate. Full Set pricing is confirmed by quotation.

Request Sample Quote Request a Custom Quote

Shipping and any Full Set upgrade are quoted before payment. No payment is taken when you submit this request.

Built for specification

Optics and mechanics, ready for your light engine

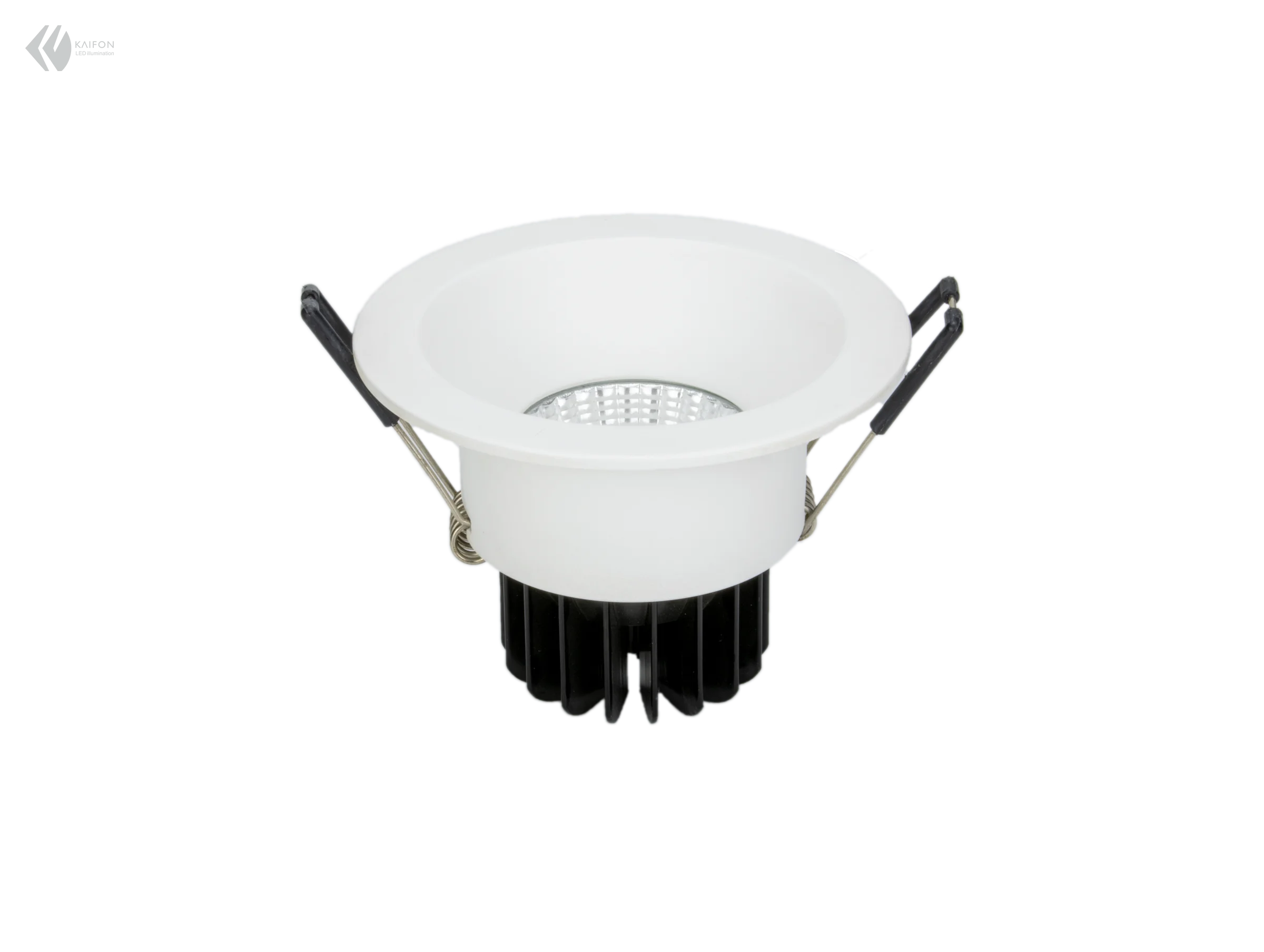

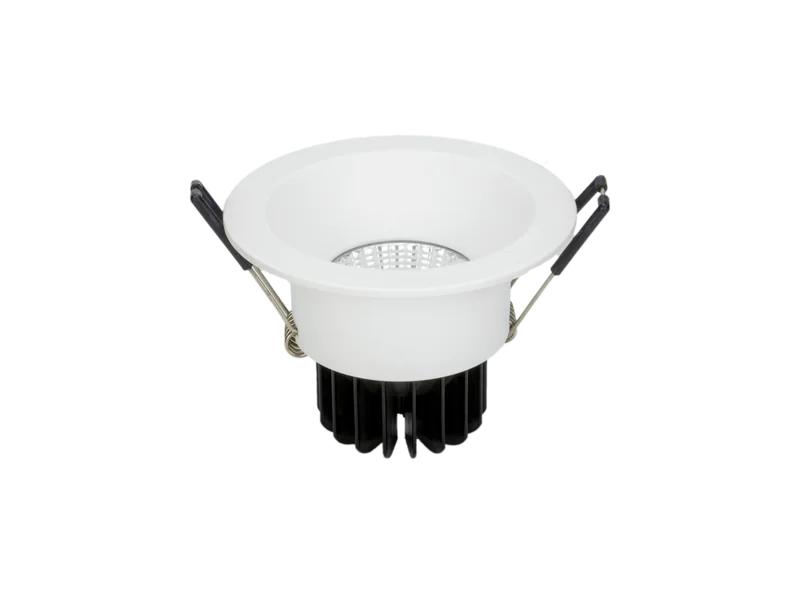

KF-HL0010-A3 is an aluminium ceiling-light housing Kit with a die-cast aluminium heat sink. Beam options are 15°, 24°, 38° and 60°, with housing colours in white or black.

Full Set reference specifications include 7W, 9W, 12W and 15W, colour temperatures of 3000K, 3500K or 4000K, and CRI ≥90. These light-engine specifications apply to the complete luminaire; the required combination is confirmed when quoting the upgrade.

The housing Kit is available for direct supply without a COB module, LED driver or COB holder. For a complete luminaire, request a Full Set upgrade and share your COB and driver requirements. Components and pricing are confirmed in the quotation.

Aluminium housing with a die-cast aluminium heat sink

Four beam options: 15°, 24°, 38° and 60°

White or black housing

Full Set reference: 7W, 9W, 12W and 15W, 3000K / 3500K / 4000K and CRI ≥90

Housing Kit direct supply without COB, driver or COB holder

Full Set upgrade with component requirements confirmed in the quote

Technical data

Specifications

Only confirmed values are shown. Full Set figures are reference configurations and are confirmed with the quote.

Kit specification

Model	KF-HL0010-A3
Beam angles	15° / 24° / 38° / 60°
IP rating	IP20
Material & finish	Aluminum
Housing colours	White / Black
Other details	Lampsource: Philips / CREE / Citizen; LED-current: 200mA~400mA; Heat-sink: Die-casting Aluminum; LED driver: with / without; Certification: CE/ROHS

Full set reference specification

Quoted

Power	7W; 9W; 12W; 15W
Luminous flux	800lm~1800lm
Efficacy	132~153 lm/W
CCT	3000K / 3500K / 4000K
CRI	≥ 90
Input voltage	220V
Rated lifetime	30,000 hours

Series overview

Compare all TL528 models

Swipe to compare →

Model	Head	Size	Power	Luminous flux	Beam angles	IP
KF-HL0010-A3		A3	7W; 9W; 12W; 15W	800lm~1800lm	15° / 24° / 38° / 60°	IP20
KF-HL0010-A4		A4	7W; 9W; 12W; 15W	800lm~1800lm	15° / 24° / 38° / 60°	IP20

Downloads

Technical files

Files are being prepared

Ask for the current datasheet, drawing or photometric file with your inquiry.

Project support

Need a different optic, finish or full-set configuration?

Share your application and project requirements. We will confirm the available configuration and quote.
