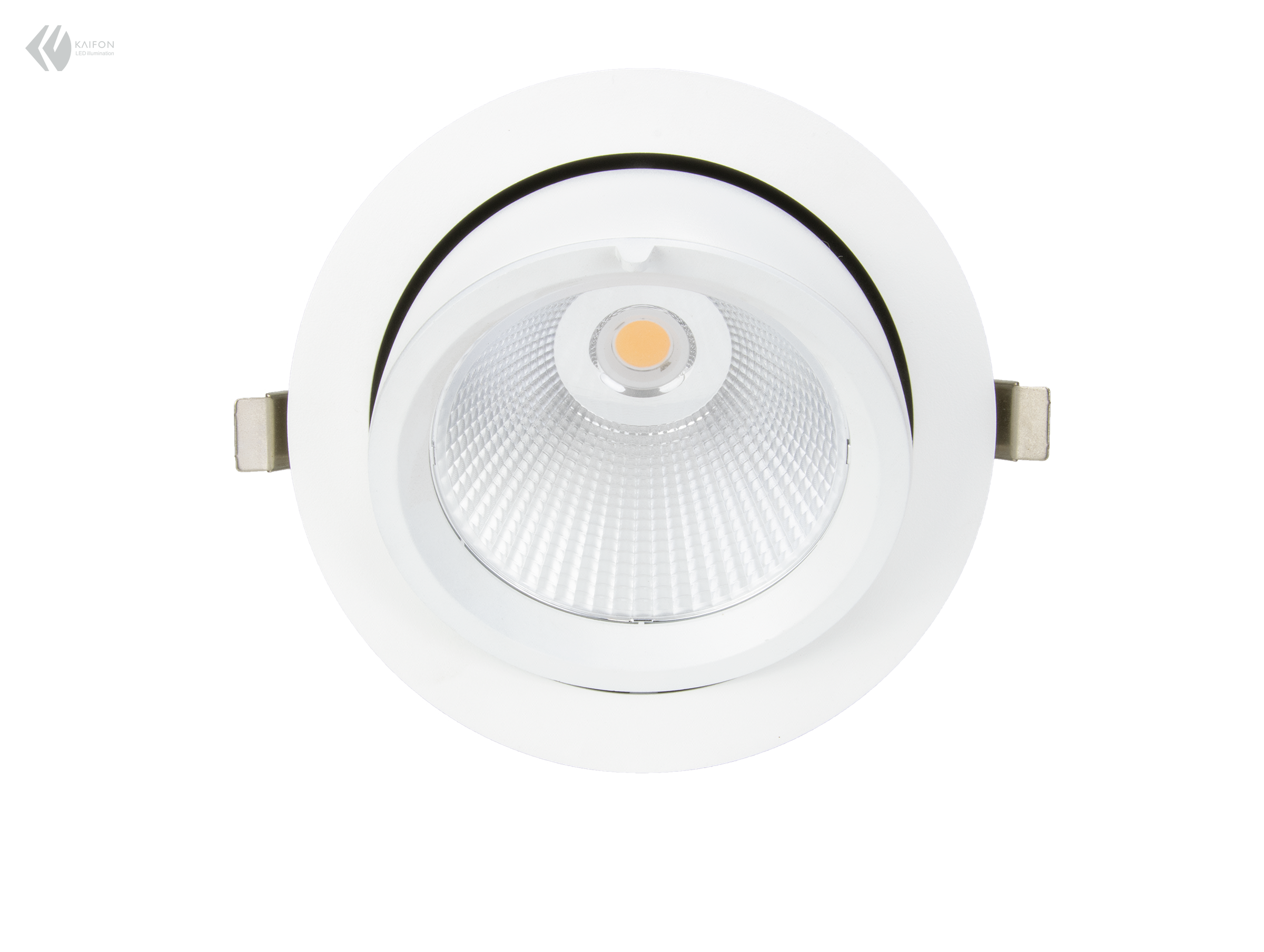

KF-9021-2

Housing kit KF-9021

KF-9021

Recessed housing Kit with four beam options and a Full Set upgrade path.

An aluminium recessed downlight housing Kit with 15°, 24°, 36° or 45° beam options. Choose direct Kit supply or request a Full Set upgrade for your specified configuration.

Kit sample

Price on request

Sample configuration
Component scope

Housing Kit

How the Kit model works →

What's included

  • Housing
  • Reflector
  • Heat sink
  • Trim ring

Supplied by you

  • COB module
  • LED driver
  • COB holder

Configuration freedomKeep control of the light engine while the housing, optic and thermal structure stay consistent.

Housing colour Required

Choose the COB, driver, CCT and optic you want us to integrate. Full Set pricing is confirmed by quotation.

Request Sample Quote Request a Custom Quote

Shipping and any Full Set upgrade are quoted before payment. No payment is taken when you submit this request.

Built for specification

Optics and mechanics, ready for your light engine

KF-9021 is an aluminium recessed downlight housing Kit with a die-cast aluminium heat sink. It offers 15°, 24°, 36° and 45° beam options, with housings in white, black or silver grey.

Full Set reference power options are 12W, 20W, 25W, 35W, 40W and 60W. Reference colour temperatures are 3000K, 3500K and 4000K, with CRI ≥90. The final light-engine configuration is confirmed in the upgrade quotation.

Choose the housing Kit for direct supply and assembly with your own light engine; the Kit excludes the COB module, LED driver and COB holder. If you need a complete luminaire, request a Full Set upgrade and provide your COB and driver requirements for confirmation.

01

Aluminium recessed housing with a die-cast aluminium heat sink

02

Beam options: 15°, 24°, 36° and 45°

03

White, black or silver grey housing

04

Full Set reference power options: 12W, 20W, 25W, 35W, 40W and 60W

05

Full Set reference: 3000K / 3500K / 4000K and CRI ≥90

06

Housing Kit direct supply or a separately quoted Full Set upgrade

Technical data

Specifications

Only confirmed values are shown. Full Set figures are reference configurations and are confirmed with the quote.

Kit specification

ModelKF-9021
Beam angles15° / 24° / 36° / 45°
IP ratingIP20
Material & finishAluminum
Housing coloursWhite / Black / Silver Grey
Other detailsLampsource: Philips / CREE / Citizen; LED-current: 300mA~1600mA; Heat-sink: Die-casting Aluminum; LED driver: with / without; Certification: CE/ROHS/SAA

Full set reference specification

Quoted
Power12W; 20W; 25W; 35W; 40W; 60W
Luminous flux1400lm~7140lm
Efficacy132~153 lm/W
CCT3000K / 3500K / 4000K
CRI≥ 90
Input voltage220V
Rated lifetime30,000 hours

Downloads

Technical files

Files are being prepared

Ask for the current datasheet, drawing or photometric file with your inquiry.

Project support

Need a different optic, finish or full-set configuration?

Share your application and project requirements. We will confirm the available configuration and quote.
